Teledyne e2v designs and manufactures magnetrons for medical, transport and security, and industrial applications.

For more than 70 years, we have been the preferred partner of choice for original equipment manufacturers across the world, all of whom demand the highest standards of quality, accuracy and reliability.

In addition to supplying magnetrons, our engineers also work closely with clients on component design and system integration, thereby speeding up product development and guaranteeing seamless, long-lasting performance.​

​​
The Technology​​​
​​
Applications and Products​​

Magnetron blue top​​

Available accessories include:​

  • Electromagnets​
  • Permanent Magnets​​
  • Waveguide Transitions​
  • RF Absorbers
Product ​ Generic Model ​ Freq. MHz​ Peak Output Power kW​ Average Input Power kW​
S-band magnetron MG5125 2993-3002​ 2000​ 5.0​
S-band magnetron MG5193 2993-3002​ 2600​ 6.0​
S-band magnetron MG7095 2993-3002​ 3100​ 8.0​​​​
S-band magnetron MG6090 2993-3002​ 3100​ 8.0​​​​
S-band magnetron MG6730S
2856-2859
5500​
7.0​​
HP S-band​ magnetron
MG8076 ​2993-3002
​7500
​​15.0
​Self-Shielded S-band magnetron
​8MG0531-00
​2993-3002
​3100
​8.0

Product ​ Freq. MHz​ Power kW​
X-band magnetrons 9345-9680​ ​1.5 - 2.50​
S-band magnetrons 3010-3090​ 10 - 60​
Gen 4 X-band magnetrons 9380-9440​ 4 - 10​
VTS magnetrons 8870-9520​​ 25​​​​​

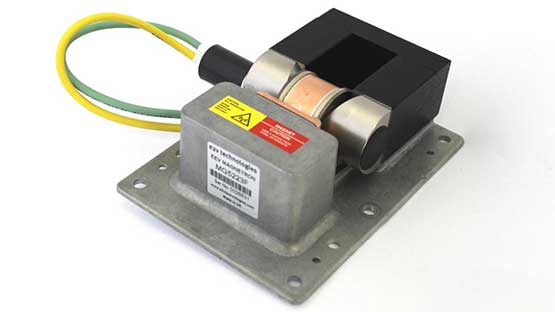

Marine Magnetron​​

Available accessories include:​

  • Electromagnets
  • Permanent Magnets
  • Waveguide Transitions​​

AEP Marine Parts is a global distributor of Teledyne e2v (previously EEV) marine radar magnetrons and components and keeps local stock of the complete range of marine radar products.

Buy Teledyne e2v radar components​​​

Product​ ​ Generic Model ​ Freq. MHz​ Peak Output Power kW​ Average Input Power kW​
S-band magnetron MG5125 2993-3002​ 2000​ 5.0​​
S-band magnetron MG5193 2993-3002​ 2600​ 6.0​
S-band magnetron MG7095 2993-3002​ 3100​ 8.0​

Available accessories include:

  • Electromagnets
  • Permanent Magnets
  • Waveguide Transitions​​

Product ​ Generic Model ​ Freq. MHz​ Peak Output Power kW​ Average Input Power kW​
S-band magnetron MG5125 2993-3002​ 2000​ 5.0​
S-band magnetron MG5193 2993-3002​ 2600​ 6.0​
S-band magnetron MG7095 2993-3002​ 3100​ 8.0​​​​​​​

Available accessories include:

  • Electromagnets
  • Permanent Magnets
  • Waveguide Transitions​
